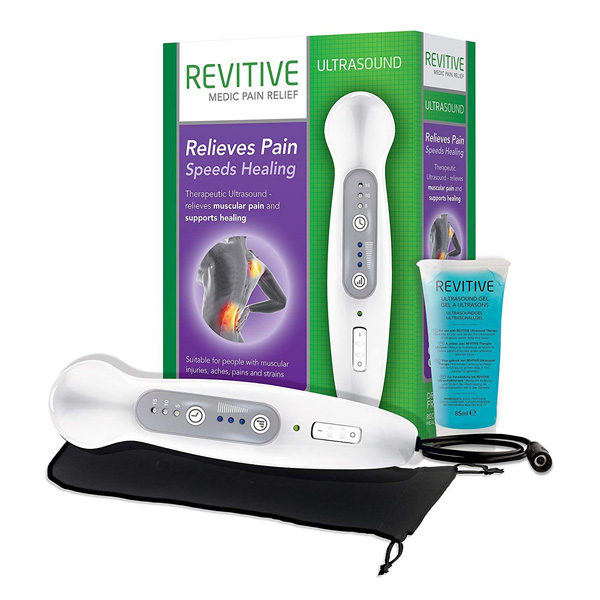

REVITIVE Portable Ultrasound Unit
InsideOut offers the REVITIVE portable Ultrasound unit. This Ultrasound unit is an effective tool for your rehabilitation of a variety of muscle and circulation issues.
Call or visit us to purchase or rent this unit.
Ultrasound or Ultrasonic massager works within the deep body tissues for the treatment of selected medical conditions such as relief of pain, muscle spasms, and joint contractors. It helps with muscle rehabilitation, relief for growing and acute pain, circulatory acceleration of blood, sport injury alleviation, scar and skin tissue problems, pain relief and muscular spasm reduction.
Ultrasound works by high-speed vibration and heat effect that stimulate the deep tissue cells. Applied continuous movement of treatment head, using water-based gel, facilitates transfer of ultrasonic waves. Ultrasound wave penetrates the skin with transformation of heat and the micro-vibration, increasing the blood circulation. This allows the movement of proteins in the blood into the cells which strengthen tissue fibers. Proteins are the essential building blocks to help tissue cells repair themselves.
This is completely safe and has no negative side effects.
- Portable size for home or travel use
- Temporary relief of minor pain, relief of joint discomfort, relax tense muscles
- Thermal through absorption of ultrasonic energy to generate deep heat within body tissues (feeling of heat)
- Mechanical (as micro massage)
- Biological through physiochemical processes – improved blood circulation in the local area where applied
- Helps reduce inflammation
- The REVITIVE unit is Medical Grade
The sound waves emitted stimulate deep tissue and cells (up to 5 cm deep) beneath the skin’s surface.
Stimulating the cells allow better movement of the proteins into tissue that encourage the repair and rebuilding of tissue.
Specifications:
- Input: AC 100-240V, 50/60 Hz, 0.35A
- Output: DC 15V, 1.2A
- Frequency: 1Mhz (+/- 10%)

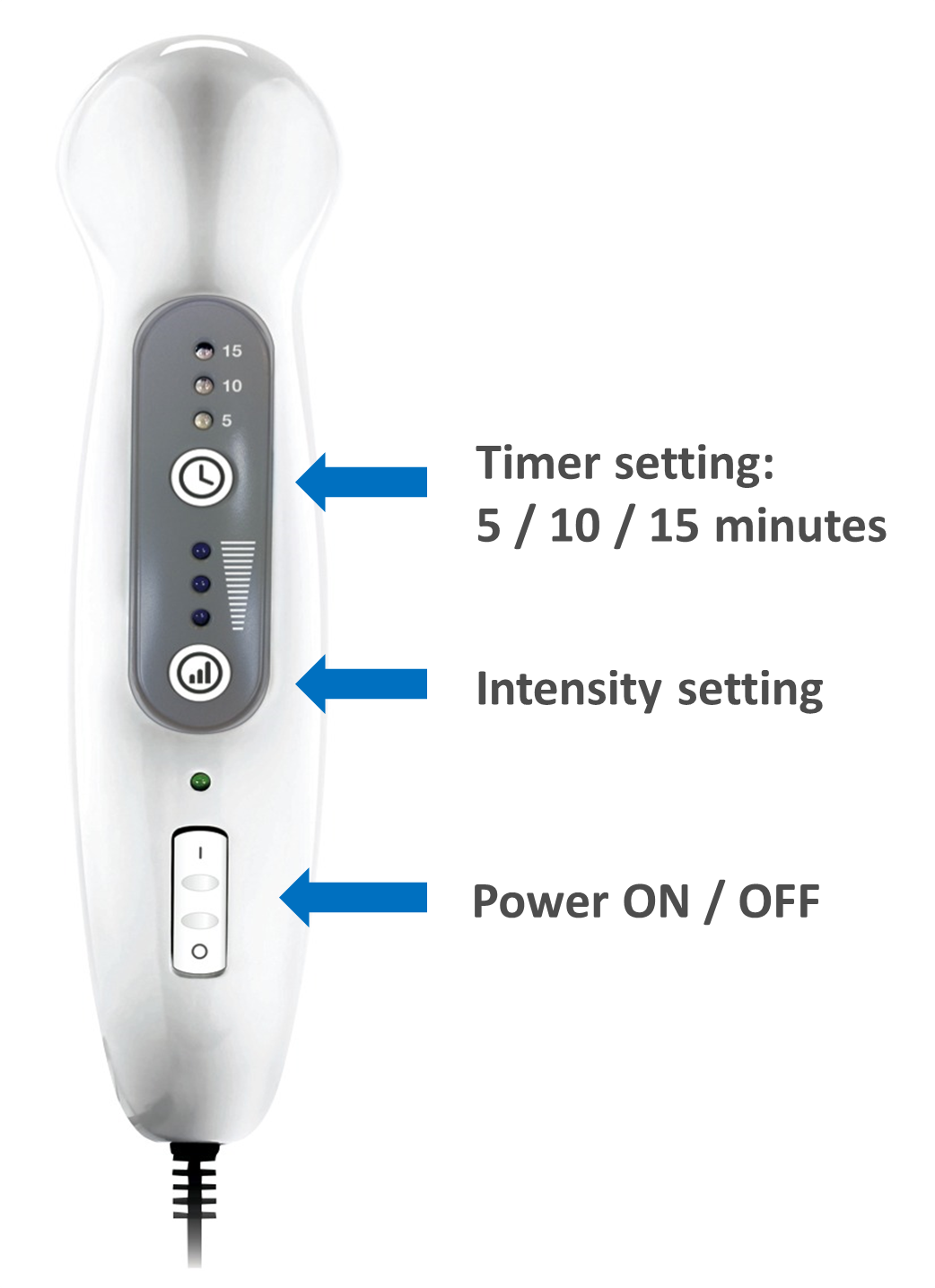

- Modes: 3 levels (Low, Medium, high)
- Time Settings: 5 / 10 / 15 minutes with auto shut OFF
- Power Intensity Output: 0.7W/cm² – Low
1.0W/cm² – Medium
1.2W/cm² – High - Duty Factor: 30% (Low), 40% (Medium), 50% (High)
- RBN: < 8.0
- Rated Output Power: 9.6W (+/- 20%)
- Effective Intensity: 2.4W/cm² (+/- 20%)
- Treatment head area: 4 cm²
- Beam Type: Collimated
- Modulation Wave Type: Pulsed
- Ultrasound Gel: Water soluble
- Dimensions: 50 x 45 x 200 mm
- Weight: 200 gm
- Medical Grade device
